Introduction of Charcoal Briquetting Machine

Charcoal powder briquetting machines can make carbonized straw, wood chips, straw, rice straw, bark, and other biomass material into briquettes through high-pressure rollers extrusion forming. Charcoal powder can be pressed into many shapes like elliptical shape, oval shape, egg shape, pillow shape; square shape, etc. which can base on actual demands from customers, the finished products can be used as a BBQ, boiler fuel, civil burning, and industrial fuel. Charcoal briquetting machine has high work efficiency; currently, it is widely used in India, Brazil, Malaysia, Russia, and other countries. Charcoal briquetting machines can be divided into large, medium, and small according to capacity. Generally, a large production line is 5-10TPH, a medium production line is 3-5TPH, and a small production line is 1-3TPH. Users can choose according to their own needs.

The charcoal briquettes are with high strength can not be broken easily during transportation or burning. Charcoal briquetting machines not only can make full use of carbon recourses but also save a lot of energy consumption and economic cost, it is favorable energy conservation and environmental protection equipment.

Features of Zhengke Charcoal Briquetting Machine

1. High pressure and high briquetting ratio

The charcoal briquetting machine is specially designed with four rollers that can enlarge equipment pressure and improve briquette-making efficiency. In addition, hydraulic devices and screw feeding inlets can be alternatives if required.

2. Energy saving & environmental protection

The charcoal briquette machine is mainly used to press powdery charcoal and dust to regular shaped briquettes for further usage, reducing dust pollution and improving resource utilization ratio. Meanwhile, briquetting machine is adopted a special design in mechanical structure and power control; it can run in low power, it is favorable for energy conservation and environmental protection equipment. The charcoal briquetting machine produced by Zhengke is adopted an enclosed structure design, during briquetting; there is less pollution and noise.

3. Wide application and low requirement for the working environment

The charcoal briquette machine is suitable for use in all countries around the world. According to different conditions of every country, it can be reasonably adjusted for normal use, such as voltage, engineering design requirements, geographical conditions, etc. Additionally, charcoal briquetting machines can be normally used in all kinds of severe environments, such as extremely cold weather, high temperature, plateau, etc.

4. Easy installation and simple transportation

The charcoal briquetting machine is designed with high strength steel plate as its support, enabling it to be directly used on the hard flat areas without foundation, there is no vibration during working, in addition, it is easy for users to transfer and transport this equipment.

5. Few employing, simple operation and easy maintenance

The charcoal briquette machine can be designed with semi-automatic and full automatic based on customer’s requirements, thus ensuring less labor and simple operation. In daily use, you only need to do regular maintenance according to the maintenance instruction.

6. High safety

All of the drive parts of charcoal briquette machine such as drive shaft, gear, electric motor, belt pulley, etc. are adopted enclosed or semi-enclosed design in strict accordance with the equipment safety standards, and it is outfitted with an observation table and hole on this machine, thereby ensuring equipment safety and personal safety.

Main Technical Parameter of Charcoal Briquetting Machine

Model	Roll diameter(mm)	Capacity(t/h)	Power(kW)	Briquettes      shape and size
ZKBM290	290	1-3	5.5	Defined by users
ZKBM360	360	4-6	11-15
ZKBM430	430	6-8	18.5
ZKBM500	500	7-12	18.5-55
ZKBM650	650	10-15	37-45
ZKBM750	750	15-20	75-110
ZKBM850	850	20-25	90-110
ZKBM1000	1000	25-30	90-132

Note: Due to the difference in each customer's materials and briquettes’ size, production capacity and configuration of briquetting machine will also be changed. At the same time; we also can configure the hydraulic system according to customer demand. You can send an email or call us, inform us of your material details; we will make the best solution for you according to your demand.Thank you for your support!

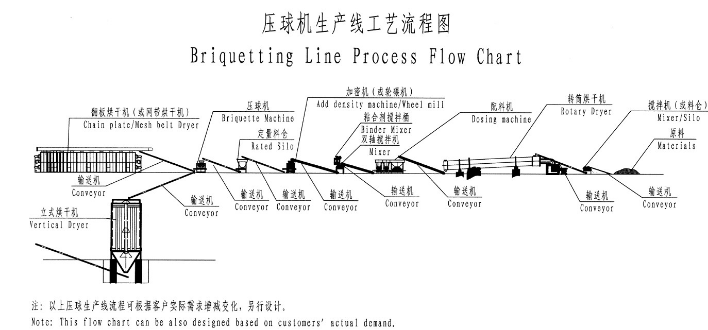

Charcoal Briquetting Machine Process Flow Chart
