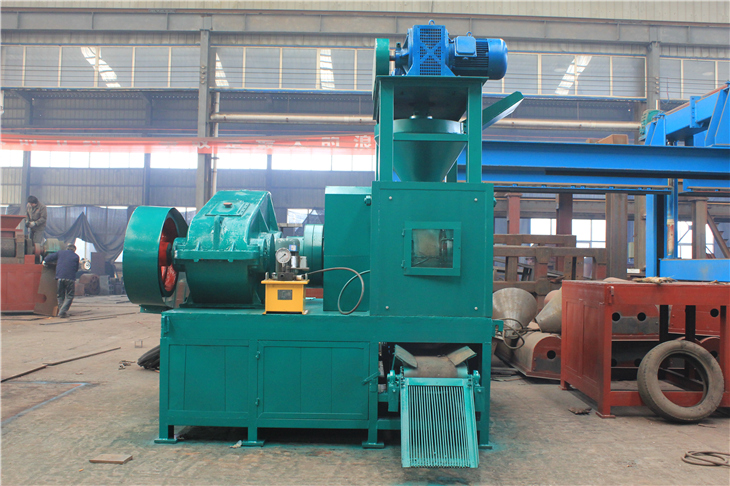

Lime Briquetting Machine

Introduction of Lime Briquetting Machine

Lime briquette machine can press the lime powder, after forming briquettes can be used as chemical reactant used in metal smelting area. Lime briquetting machines had been used in the steel smelting industry widely. As to the characteristic of lime that it can not blend with water, must briquetting directly, the lime briquetting machine is also named high-pressure hydraulic dry powder briquetting machine.

During the lime briquetting process, the lime size should be less than 5 mm so that lime briquetting machine can press, if the lime size is large than 5mm, the lime need to crush. The standard lime briquette size is 38mm (Length) * 25mm (Width) * 13mm (Height), lime briquettes can be made with elliptical shape, oval shape, egg shape, pillow shape, square shape, etc, generally. The size can also be designed by buyer's requirements. The final briquettes produced by lime briquetting machines can be used as metal smelting accessories; it is a good chemical reactant, it is widely used in the coal industry, metallurgy industry, chemical industry, and other industries.

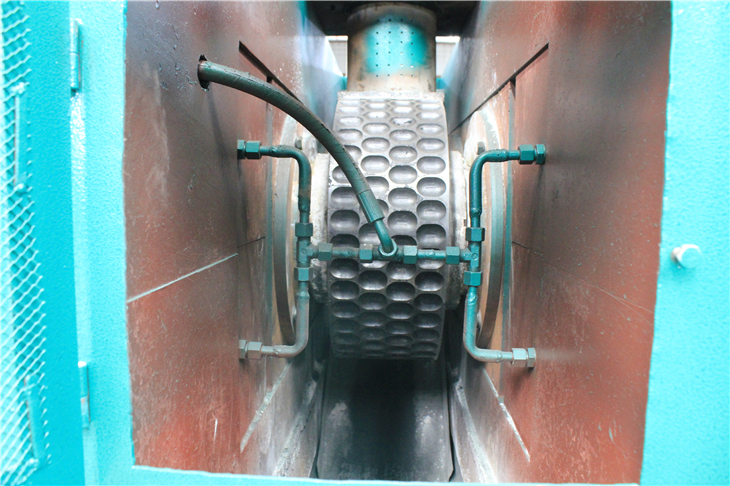

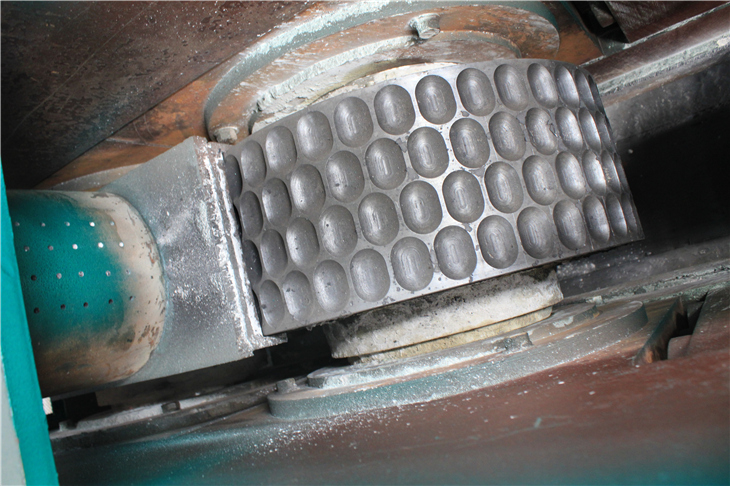

The design of the hydraulic dry powder briquetting machine from our company is unique and easy to dismount and assemble. The roller is high-strength, wear-resistant, anti-corrosion, and the base of the lime briquetting machine is made of high-strength steel plate. It can be directly placed on the hardening ground level after assembling, without foundation treatment so that reducing the user investment and space, convenient to install.

Lime briquetting machines not only can make full use of natural recourses, but also save a lot of energy consumption and economic cost, it is favorable energy conservation and environmental protection equipment. Zhengke lime briquetting machine had exported to Russia, USA, Australia, Ireland, Israel, India, Malaysia, South Africa, Russia, Oman, Saudi Arabia, Tanzania, Mongolia, etc. all the briquetting machines are with normal operation, enjoyed good reputation from customers.

Features of Zhengke Lime Briquetting Machine

1. High pressure and high briquetting efficiency

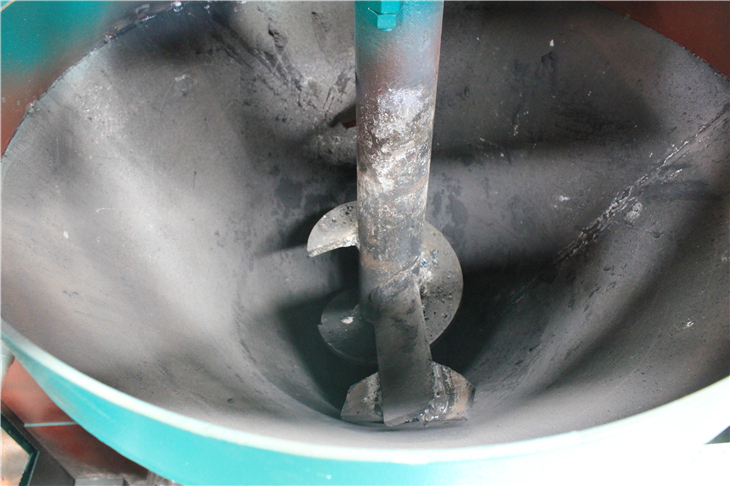

Lime briquetting machine is adopted with screw feeding force, make the materials fully supply to rollers, increase the briquettes strength, and improve the briquetting efficiency. Meanwhile, this machine is equipped with hydraulic system and energy accumulator, able to keep constant pressure.

2. Energy saving & environmental protection

Lime briquetting machine is mainly used to press powdery industrial wastes and dust to regular shaped briquettes for further usage, reducing dust pollution and improving resource utilization ratio. Meanwhile, briquetting machine is adopted a special design in mechanical structure and power control; it can run in low power, it is favorable for energy conservation and environmental protection equipment. The lime briquetting machine produced by Zhengke is adopted enclosed structure design, during briquetting; there is less pollution and noise; Wide application and low requirement for working environment. Lime briquetting machine is suitable for use in all countries around the world. According to different conditions of every country, it can be reasonably adjusted for normal use, such as voltage, engineering design requirements, geographical conditions, etc. Additionally, a Lime briquetting machine can be normally used in all kinds of severe environments, such as extremely cold weather, high temperature, plateau, etc.

3. Easy installation and simple transportation

The lime briquetting machine is designed with a high-strength steel plate as its support, enabling it to be directly used on the hard flat areas without foundation, there is no vibration during working, in addition, it is easy for users to transfer and transport this equipment.

4. Few employing, simple operation and easy maintenance

The lime briquetting machine can be designed with semi-automatic and full automatic based on customer’s requirements, thus ensuring less labor and simple operation. In daily use, you only need to do regular maintenance according to the maintenance instruction.

5. High safety

All of the drive parts of lime briquetting machine such as drive shaft, gear, electric motor, belt pulley etc. are adopted enclosed or semi-enclosed design in strict accordance with the equipment safety standards, and it is outfitted with an observation table and hole on this machine, thereby ensuring equipment safety and personal safety.

Main Technical Parameter of Lime Briquetting Machine：

Note: Due to the difference in each customer's materials and briquettes’ size, production capacity and configuration of briquetting machine will also be changed. At the same time; we also can configure the hydraulic systems according to customer demand. You can send an email or call us, inform us of your material details; we will make the best solution for you according to your demand. Thank you for your support!

Lime Briquetting Machine Process Flow Chart

1、Raw Material

2、Rated Silo

3、Conveyor

4、Frame

5、Inlet

6、Screw Forcing Feeding Device

7、Reducer

8、Motor

9、Base

10、High-pressure Dry powder Briquetting Machine

11、Finished products

12、Discharging Conveyor

13、Conveyor

Kehua Industrial is one of the leading manufacturers and suppliers of high-quality and high-safety lime briquetting machines in China. Our lime briquetting machine products are sold at a cheap price, and our factory has many products in stock. Welcome to buy energy-saving, eco-friendly, and discount equipment with us and check the quotation with us.
